Quality Control Methods for Float Zone Wafers: Tailoring Techniques to Unique Properties

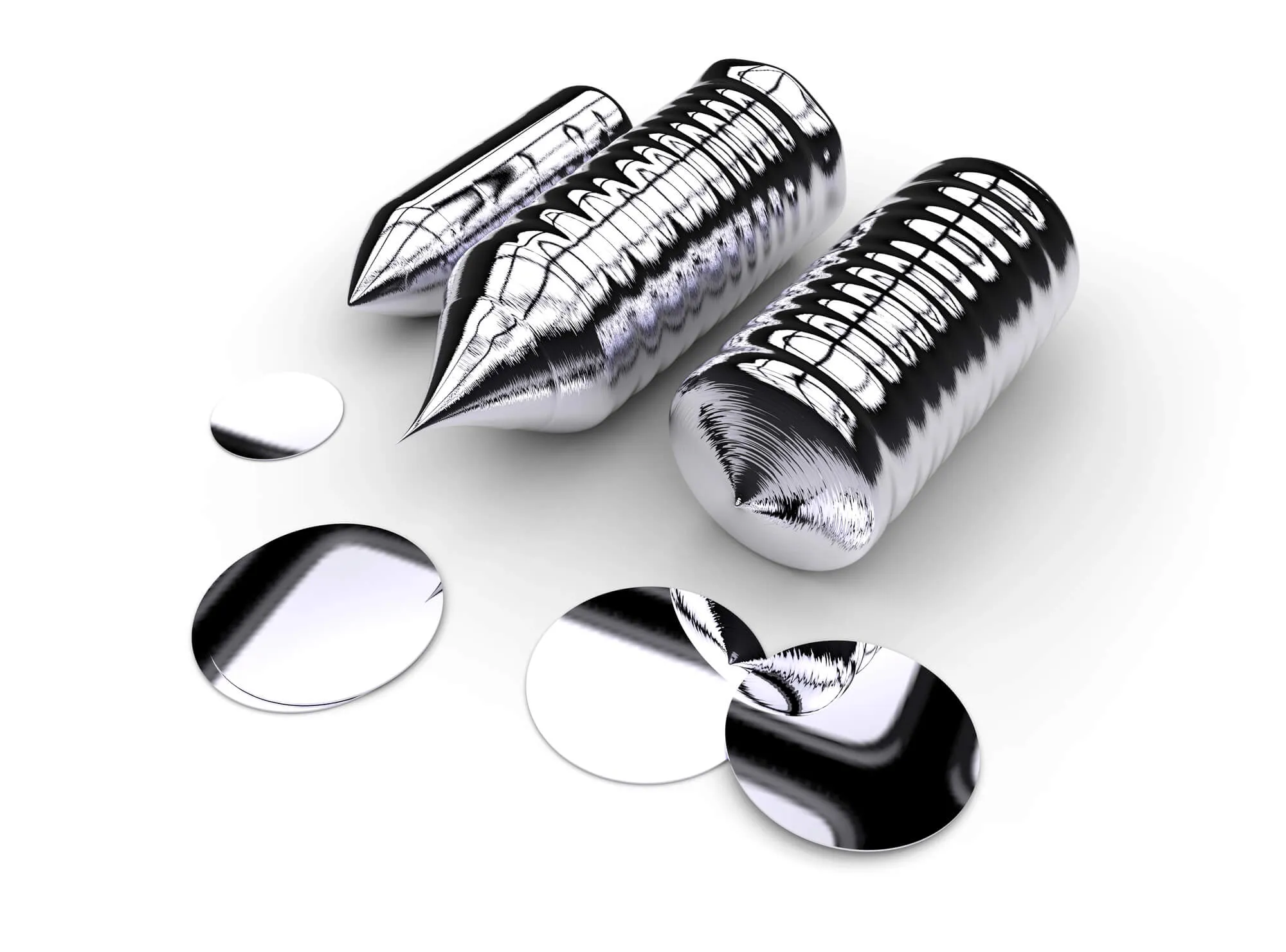

Float zone (FZ) wafers play a critical role in the semiconductor industry. The unique fabrication process of float zone crystal growth sets these substrates apart thanks to their high purity and superior electronic properties, making them a go-to option for applications that involve superior electrical qualities.

However, this also requires other quality control methods, distinct from those used in crystals grown with the Czochralski (CZ) technique. Luckily, several quality control methods are employed for FZ wafers, specifically tailored to address their distinct characteristics and challenges.

How Float Zone Wafer Properties Affect Quality Control

Float zone wafers are a special substrate distinguished by their low defect density and high purity. This is because dopants are not present during the crystal growth process.

To create a highly uniform and crystalline structure, the FZ method involves melting a small portion of the silicon feed rod in a high-temperature zone and letting the molten silicon crystallize as it is pulled away.

Because of their superior electrical qualities, FZ wafers are perfect for high-performance uses like high-frequency devices and power electronics. However, there are particular difficulties associated with the very qualities that make FZ wafers appealing:

• First, these wafers are more vulnerable to thermal and mechanical stresses due to the float zone growth process. Throughout the growth phase, constant observation guarantees ideal conditions, lowering the possibility of flaws.

• Unlike CZ wafers, FZ wafers require exceptionally high purity levels, which require stringent chemical analyses and thorough incoming material inspections.

• Because FZ wafers are used in high-performance devices, the electrical testing procedures assess parameters that are essential to the device's operation and guarantee that they adhere to industry standards.

So, specific quality control methods for FZ-grown crystal are needed to adapt to these specific challenges and safeguard these unique wafers’ integrity. Some of these are:

Incoming Material Inspection

Strict incoming material inspection is the first step in quality control for FZ wafers. For FZ growth, silicon feed rods must be incredibly pure, frequently surpassing 99.9999%. Therefore, the necessary raw materials are subjected to a chemical composition analysis before manufacturing.

Methods like inductively coupled plasma mass spectrometry (ICP-MS) analyze the elemental composition to ensure that impurities are below the detection limit. Additionally, visual inspection for feed rod flaws helps guarantee that only the best materials are used in the float zone process.

In-Process Monitoring

Monitoring the growth process in real-time is crucial to maintaining high-quality standards. The floating zone method requires rapid melt mixing and a large temperature gradient at the solid/liquid interface to produce high-quality crystals.

However, the stability and formation of the molten zone can be affected by the feed rod's characteristics and time-dependent thermocapillary convection. Temperature can have detrimental effects on the growth process in several ways:

• If temperature changes are excessively sharp, the crystal may experience thermal stresses. These stresses could compromise the crystal's integrity by causing dislocations, cracks, or other structural flaws.

• Overheating could cause the melt to crystallize too quickly, creating an uneven crystal structure. Conversely, an excessively low temperature may slow growth, raising the possibility of defects and impurity incorporation.

• Some impurities in the melt may become more soluble at higher temperatures, which could cause them to be distributed unevenly throughout the developing crystal.

• Abrupt temperature changes may impact the material's phase stability. Significant temperature variations could result in undesired phase changes in the silicon, affecting its mechanical and crystalline qualities.

• Higher temperatures can make oxidation and environmental contamination more likely, particularly if the growth zone's protective atmosphere is weakened. This contamination may cause the crystal to acquire flaws and contaminants.

• Differences in thermal expansion coefficients can cause mechanical stress and defects during temperature changes, especially during cooling, if the float zone crystal is processed with other materials (such as substrates).

Temperature is measured in real-time during the FT crystal growth to prevent this. The silicon is kept stable during crystallization using thermocouples or infrared thermography to monitor temperature gradients continuously.

To avoid flaws brought on by fast or uneven crystallization, automated systems also monitor the growth rate, making sure it stays within predetermined bounds.

Defect Inspection

Detailed defect inspection methods are used to meet the high standards for defect density in FZ wafers.

Surface flaws, such as scratches and pollutants, are searched for using sophisticated optical systems outfitted with laser scanning and imaging technologies. High-resolution systems can find tiny flaws that might compromise wafer performance.

Additionally, FZ wafers' crystalline quality is evaluated utilizing X-ray diffraction (XRD). These tools offer insights into the integrity of the crystal structure by providing data on dislocation density and lattice imperfections.

Surface Roughness Analysis

Their surface quality can strongly impact FZ wafers' performance in electronic devices. Atomic Force Microscopy (AFM) measures the surface roughness of these wafers at the nanoscale.

AFM, a kind of scanning probe microscopy (SPM) with very high resolution, has been shown to have resolution on the order of fractions of a nanometer, which is more than 1000 times better than the optical diffraction limit.

This technique allows for precisely quantifying surface properties, guaranteeing that they satisfy the exacting standards needed for advanced electronics applications.

Final Inspection and Reliability Testing

Once the wafers are fabricated, a comprehensive final inspection must also be conducted.

Stress testing is carried out under various circumstances (such as humidity, thermal cycling, etc.) to replicate the operating environment of the finished devices. This allows us to test the long-term performance of our FZ wafers.

FZ wafers are frequently used in applications requiring high electronic performance, making electrical testing an essential part of this process, too.

High-purity FZ wafers must have particular resistivity levels. To ensure that the electrical characteristics fulfill the required standards, resistivity is frequently measured using four-point probe techniques. Carrier concentration and mobility are also measured to ensure the wafers are suitable for high-performance applications.

Understanding Quality Requirements of a Float Zone Wafer

Float zone wafer quality control techniques are specially designed to handle the special characteristics and difficulties of these high-purity materials. By following these practices, manufacturers can guarantee the production of superior materials that satisfy the exacting requirements of cutting-edge semiconductor applications.

Quality control procedures will also change as technology advances to preserve electronic devices' superior performance. Here at Wafer World, we aim to stay up to date with all quality control methods and innovations. If you’d like to know more about the performance standard of your float zone wafers, contact us today!
